ATOM Babies: てのひらに乗るかわいいいきもの

© CC BY 4+ visibility2567
© CC BY 4+
visibility2567

ATOM BabiesはM5Stack社のATOM Matrixを使ったかわいいいいきものです。HatやUnitを使ってさまざまな能力を持つATOM Babiesをつくることができます。

link https://github.com/3110/atom-babies
  • 視覚効果賞M5Stack Japan Creativity Contest 2023
動画
開発素材
システム構成
system image

実装方法

ATOM Babiesの実装にはUIFlow版Arduino版(2022年3月1日追加)の2種類あります。

UIFlow版はM5Stack社がM5Stackシリーズ向けに提供しているブロックプログラミング環境であるUIFlow を使って実装できます。ATOM Babies用のカスタムブロックを提供しているので,誰でもかんたんにATOM Babiesをつくることができます。

ATOM Babies用のカスタムブロックは,M5Stack社が提供しているUIFlow Block Makerではなく,自作したUIFlow Custom Block Generatorを使用して生成しています。JSONファイルとMicroPythonファイル(.py)からカスタムブロックファイル(.m5b)を生成することができるので,Gitなどのバージョン管理システムでの管理もしやすいですし,ブロックの順序を自由に決められるなど,さまざまな利点があります。

UIFlowにはさまざまなブロックが用意されており,例えばESP-NOWで複数体を同期させたり,WiFiやBluetoothを利用して他のロボットや機器と連携させることもできます。

例えば,以下のツイートにある動画では,左のATOM Babiesの胴体にはENV Hatが,右のATOM Babiesの胴体にはM5StickC Proto Hat の中にCO2センサボードを入っているので,左の子からは温湿度と気圧が,右の子からCO2濃度がESP-NOWを使って定期的にM5Paperに送られ,グラフとして可視化することができています。

https://twitter.com/saitotetsuya/status/1579409258025979904

Arduino版Visual Studio Codeで動くPlatformIO IDE for VS Codeで実装できます。UIFlowで対応していない機能を使いたい場合はこちらを使用してください。

ハードウェア構成

ATOM BabiesはATOM Matrixを顔にしています。ATOMシリーズにM5Stick C用のHatを接続できるATOM Mateを使用してHatを接続して胴体にしたり,ATOM MatrixのGroove互換インタフェースにM5Stackシリーズ用のUnitを接続することで,ATOM Babiesにさまざまな能力を持たせることができます。

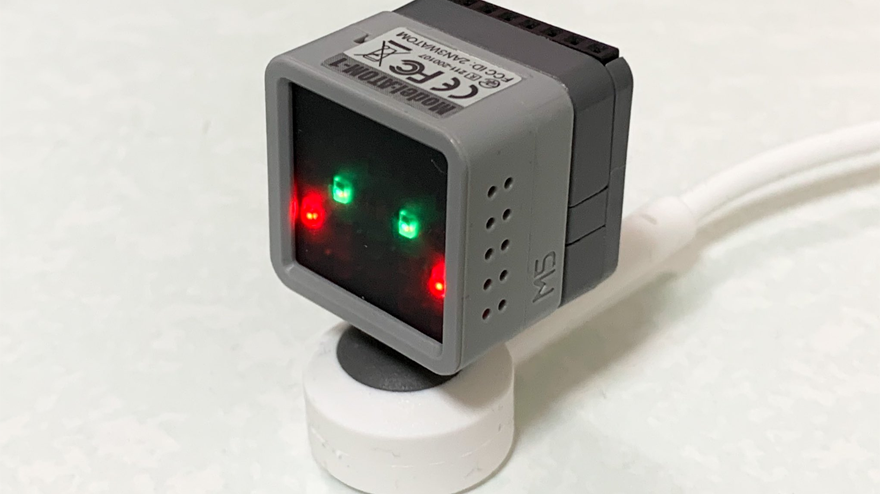

3COINSのケーブルに接続したATOM Babies

ATOM BabiesをPCに接続したり電源を供給するUSB-Cケーブルは,3COINSが販売しているスタンド型タイプCケーブルを使うとかわいく立てられておすすめです。

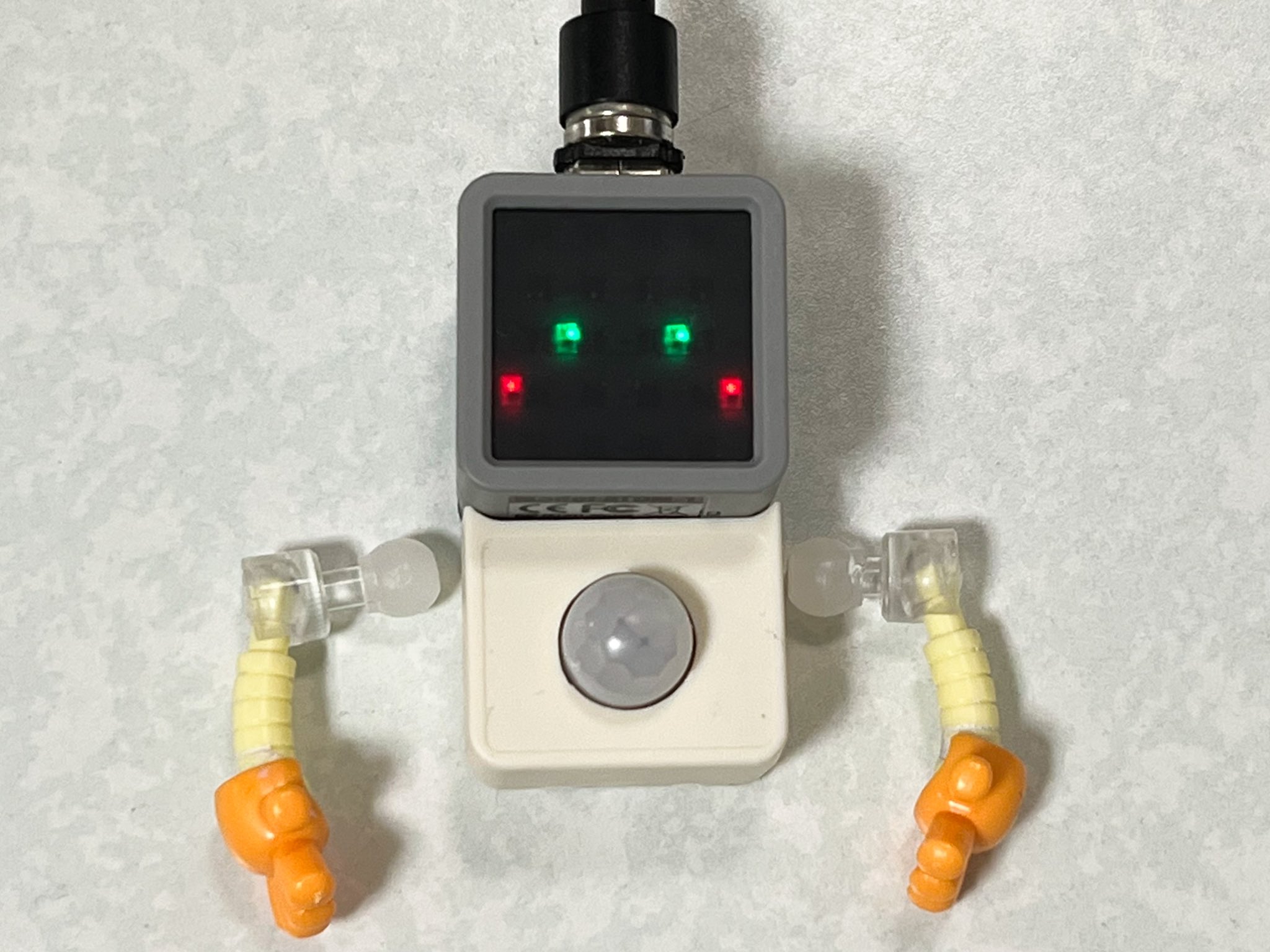

腕の構成

写真に写っているATOM Babiesの手は,バンダイのハロプラシリーズのハロの手のひらと足を流用しています。肩の部分はホビーベースのボールジョイント ミニ(クリア,PPC-Tn70)のノーマルタイプ(5mm)を使い,Hatに直径3mmの穴を開けて差し込んでいます。

利用方法

実際にATOM Babiesで何ができるのかは以下を参照ください。

また,M5Burner v3でファームウェアを公開しています。ATOM Matrixがあれば簡単にインストールできますので,是非試してみてください。M5Burnerの使いかたについては「M5Burner v3の使いかた」を参照してください。

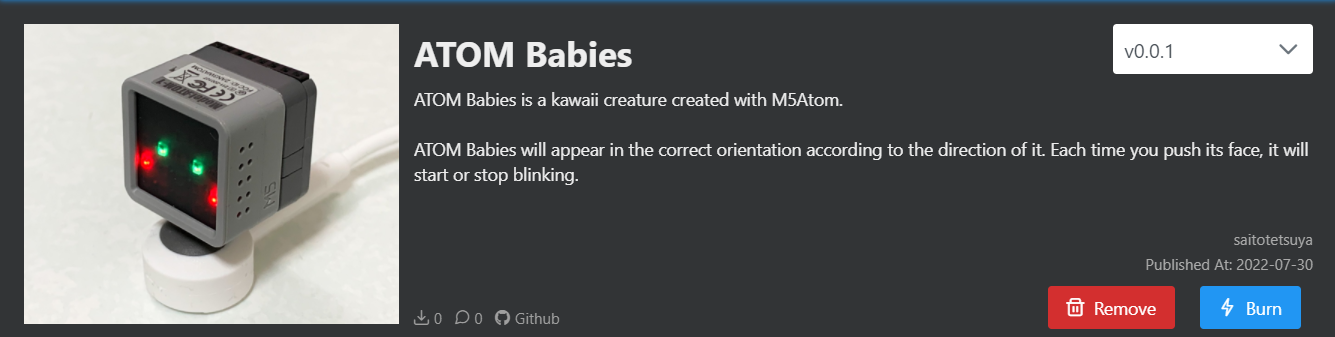

M5Burner上のATOM Babies

ファームウェア v0.0.1ではATOM Matrixの向きに合わせて顔が表示されるようになっています。また,顔を押すとまばたきを開始し,もう一度顔を押すとまばたきを停止します。

Implementation Methods

There are two types of implementations for ATOM Babies: UIFlow Version and Arduino Version (added on March 1, 2022).

The UIFlow Version uses UIFlow, a block programming environment provided by M5Stack for the M5Stack series. Custom blocks for ATOM Babies are available, allowing anyone to easily create ATOM Babies.

The custom blocks for ATOM Babies are generated using a self-made UIFlow Custom Block Generator instead of the UIFlow Block Maker provided by M5Stack. You can generate custom block files (.m5b) from JSON and MicroPython files (.py). This makes it easier to manage using Git or other version control systems, and offers various advantages like being able to freely determine block order.

UIFlow offers a range of blocks that allow functionalities like syncing multiple units using ESP-NOW, and integrating with other robots and devices using WiFi or Bluetooth.

For instance, in the video linked in the tweet below, the left ATOM Babies' torso has an ENV Hat, and the right ATOM Babies' torso contains a CO2 sensor board within the M5StickC Proto Hat. Data like temperature, humidity, air pressure, and CO2 levels are regularly sent to M5Paper via ESP-NOW and visualized as graphs.

https://twitter.com/saitotetsuya/status/1579409258025979904

The Arduino Version can be implemented using PlatformIO IDE for VS Code which runs on Visual Studio Code.

Hardware Configuration

ATOM Babies use ATOM Matrix as their face. You can use ATOM Mate to connect Hats to the ATOM series.

ATOM Babies connected to 3COINS cable

The USB-C cable used for power and connectivity is 3COINS' Stand Type C Cable.

Arm Configuration

The hands of the ATOM Babies shown in the photo use palms and legs from Bandai's Haropla series. The shoulder parts use the normal type (5mm) of Hobby Base's Ball Joint Mini(Clear, PPC-Tn70) , with 3mm holes drilled into the Hat to insert them.

Usage

For what you can actually do with ATOM Babies, please refer to:

Firmware is available on M5Burner v3. Instructions can be found in How to use M5Burner v3(In Japanese).

ATOM Babies on M5Burner

In firmware v0.0.1, the face display aligns with the orientation of the ATOM Matrix. Pressing the face initiates blinking, and pressing it again stops it.

ストーリー

ATOM Babiesは2020年10月1日に誕生しました。いつも一緒にいられる,てのひらに乗るサイズのロボットをつくるのが目標です。

今回のATOM Babiesは電子工作なども必要なく,ハードウェアもソフトウェアもブロックを組み立てるようにつくることができます。さまざまな能力を持ったATOM Babiesたちが協力することで,一緒に暮らす人たちにとって何かの役に立ったり,生活が楽しくなるようにしたいと思っています。

ちなみに,ATOM Babiesの名付け親はM5Stack社CEOのJimmyさんです。

Jimmyさんのツイート

Story

ATOM Babies was born on October 1, 2020. The goal is to create robots that are small enough to fit in the palm of your hand and can always be with you.

ATOM Babies doesn't require any electronic tinkering; both the hardware and software can be assembled like building blocks. I hope that the diverse abilities of ATOM Babies can make your life more enjoyable.

By the way, ATOM Babies was named by Jimmy-san, the CEO of M5Stack Technology Co., Ltd.

Jimmy-san's tweet
